| BestLine Doors Products |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| 650 Model Designed for doors up to 12' x 12' |
| Specifications: Model 650 N.L. |
Metal: 6063-T5 extruded aluminum alloy with .060 Bottom-Top-Stiles. .060
inter-rails, heat treated and aged to maximum hardness. Anodized in a class
II finish. Clear anodized is standard. Powder coating is optional.
Door Thickness: 1 3/4 Inches
Joints: All butt joints are trued, tightened, and smoothed.
Rails and Stiles: Bottom rails and end stiles are 3 1/8 inches wide and 1
3/4 inches thick. Combined width of meeting rails is 2 3/4 inches. Vertical
center stiles are 1 7/16 inches wide. 5/16 inch diameter through bolts with
nuts and washers joining stiles and rails.
Glazing: Panels are enclosed in vinyl mouldings, held in place by aluminum
snap-in beads and factory glazing with specified material. Option on glazing
1/8" only.
Counter Balance: Mounted set of torsion springs and galvanized aircraft
cable.
Weatherstrip: Factory applied vinyl weatherstrip across the full width of the
bottom rail.
Normally hand operated with pull ropes.
Operated prep optional.
inter-rails, heat treated and aged to maximum hardness. Anodized in a class
II finish. Clear anodized is standard. Powder coating is optional.
Door Thickness: 1 3/4 Inches
Joints: All butt joints are trued, tightened, and smoothed.
Rails and Stiles: Bottom rails and end stiles are 3 1/8 inches wide and 1
3/4 inches thick. Combined width of meeting rails is 2 3/4 inches. Vertical
center stiles are 1 7/16 inches wide. 5/16 inch diameter through bolts with
nuts and washers joining stiles and rails.
Glazing: Panels are enclosed in vinyl mouldings, held in place by aluminum
snap-in beads and factory glazing with specified material. Option on glazing
1/8" only.
Counter Balance: Mounted set of torsion springs and galvanized aircraft
cable.
Weatherstrip: Factory applied vinyl weatherstrip across the full width of the
bottom rail.
Normally hand operated with pull ropes.
Operated prep optional.
| 750 Model Designed for doors up to 16' wide |
| Specifications: Model 750 N.L. |
Metal: 6063-T5 extruded aluminum alloy with .060 minimum wall, heat
treated and aged to maximum hardness. Anodized in a class II finish.
Clear anodized is standard. Bronze anodized standard at extra cost.
Special colors available with extra lead time.
Door Thickness: 1 3/4 Inches
Joints: All butt joints are trued, tightened, and smooth.
Rails and Stiles: Bottom rails and end stiles are 3 1/8 inches wide
and 1 3/4 inches thick. Also available 5 3/8 inches. Combined width of
meeting rails is 2 3/4 inches. Vertical center stiles are 1 7/16 inches
wide. Also available 2 3/4 inches, 5/16 inch diameter through bolts with
nuts and washers joining stiles and rails.
Glazing: Panels are encased in vinyl mouldings, held in place by
aluminum snap-in beads and factory glazing with specified material.
Option on glazing 1/8" - 1/4" or 7/16" insulated.
Counter Balance: Mounted set of torsion springs and galvanized
aircraft cable.
Weatherstrip: Factory applied vinyl weatherstrip across the full width
of the bottom rail.
Normally hand operated with pull ropes.
Operated prep optional.
treated and aged to maximum hardness. Anodized in a class II finish.
Clear anodized is standard. Bronze anodized standard at extra cost.
Special colors available with extra lead time.
Door Thickness: 1 3/4 Inches
Joints: All butt joints are trued, tightened, and smooth.
Rails and Stiles: Bottom rails and end stiles are 3 1/8 inches wide
and 1 3/4 inches thick. Also available 5 3/8 inches. Combined width of
meeting rails is 2 3/4 inches. Vertical center stiles are 1 7/16 inches
wide. Also available 2 3/4 inches, 5/16 inch diameter through bolts with
nuts and washers joining stiles and rails.
Glazing: Panels are encased in vinyl mouldings, held in place by
aluminum snap-in beads and factory glazing with specified material.
Option on glazing 1/8" - 1/4" or 7/16" insulated.
Counter Balance: Mounted set of torsion springs and galvanized
aircraft cable.
Weatherstrip: Factory applied vinyl weatherstrip across the full width
of the bottom rail.
Normally hand operated with pull ropes.
Operated prep optional.
| 850 Model Designed for doors up to 25' wide |
Metal: 6063-T6 extruded aluminum alloy with .070 minimum wall,
heat treated and aged to maximum hardness. Anodized in a class II
finish. Clear anodized is standard. Bronze anodized standard at
additional cost. Special colors available with lead time.
Door Thickness: 1 3/4 Inches
Joints: All butt joints are trued, tightened, and smoothed.
Rails and Stiles: Bottom rails and end stiles are 5 inches wide and 1
3/4 inches thick. Combined width of meeting rails is 2 3/4 inches. Has
5/16 inch diameter through bolts with nuts and washers joining stiles
and rails. Center stiles are 2 3/4 inches wide, 3 1/4 inch end stiles
and 1 7/16 inch center stiles available on smaller doors.
Glazing: Panels are encased in vinyl mouldings, held in place by
aluminum snap-in beads and factory glazing with specified material.
Options on glazing 1/8" - 1/4" or 7/16" insulated.
Counter Balance: Mounted set of torsion springs and galvanized
aircraft cable.
Weatherstrip: Factory applied vinyl weatherstrip across the full
width of the bottom rail. Side weatherstrip optional.
The doors normally require an electric operator or chain hoist.
heat treated and aged to maximum hardness. Anodized in a class II
finish. Clear anodized is standard. Bronze anodized standard at
additional cost. Special colors available with lead time.
Door Thickness: 1 3/4 Inches
Joints: All butt joints are trued, tightened, and smoothed.
Rails and Stiles: Bottom rails and end stiles are 5 inches wide and 1
3/4 inches thick. Combined width of meeting rails is 2 3/4 inches. Has
5/16 inch diameter through bolts with nuts and washers joining stiles
and rails. Center stiles are 2 3/4 inches wide, 3 1/4 inch end stiles
and 1 7/16 inch center stiles available on smaller doors.
Glazing: Panels are encased in vinyl mouldings, held in place by
aluminum snap-in beads and factory glazing with specified material.
Options on glazing 1/8" - 1/4" or 7/16" insulated.
Counter Balance: Mounted set of torsion springs and galvanized
aircraft cable.
Weatherstrip: Factory applied vinyl weatherstrip across the full
width of the bottom rail. Side weatherstrip optional.
The doors normally require an electric operator or chain hoist.

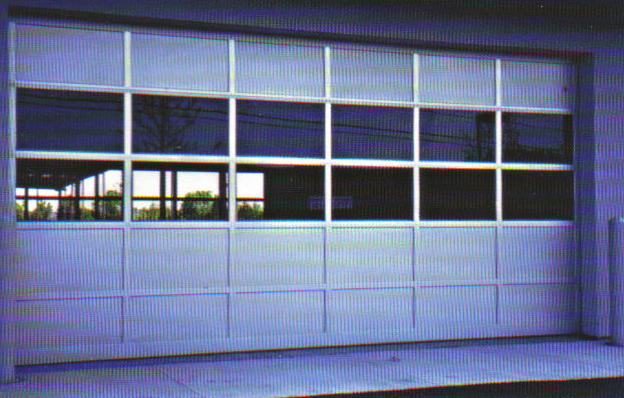

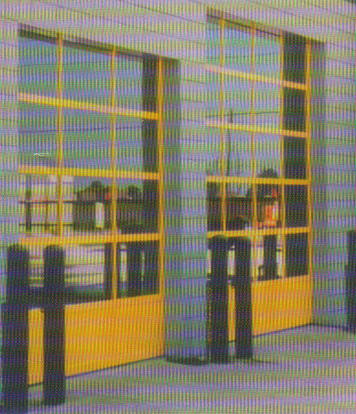

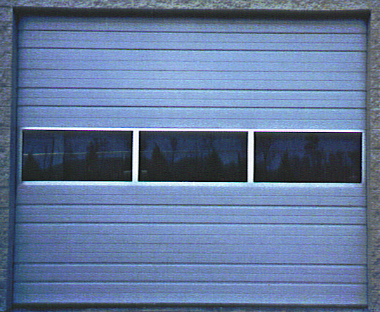

| Aluminum Full View Sections & 24 Gauge Steel Overhead Doors |
| Available up to 20ft. |
Special customizing to
match any stile location.
Glazing available is 1/8" -
1/4" annealed or tempered
or 7/16" insulated.
match any stile location.
Glazing available is 1/8" -
1/4" annealed or tempered
or 7/16" insulated.

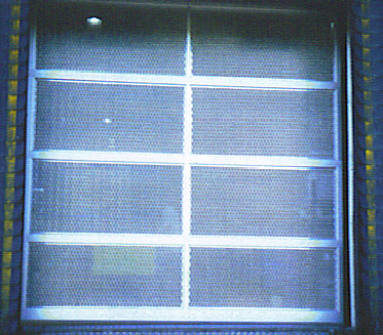

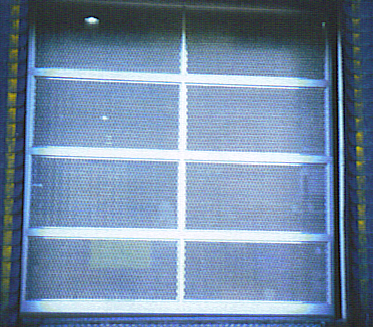

| Aluminum Screen Doors |

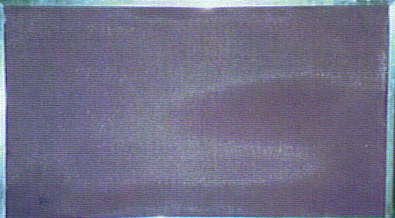

| Aluminum Screen Wire |

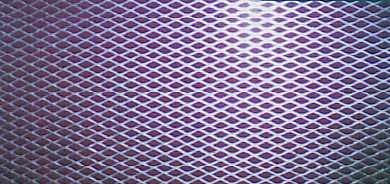

| Expanded Aluminum |
| Specifications: Model 850 H.D. |
